Project Overview-Active Harmonic Filter for CUHK Library Building
The Chinese University of Hong Kong (CUHK) is a top ranking university in Asia found in 1963. The CUHK has a global vision and a mission to combine tradition with modernity, and to bring together China and the West. CUHK teachers and students hail from all around the world. CUHK graduates are connected worldwide through an extensive alumni network.
The CUHK Library Building is a commercial building in terms of the electric characteristics. A great number of nonlinear load were use in the electric system of the building such as the lighting system, computers and the AC system as well. Those nonlinear loads can cause significant harmonic pollution particular in Harmonic Order 3rd. This is because the switch power supply inside the LED lighting and the VFD in the air conditioning system are the main sources of Harmonic Order 3th. A large amount of 3rd harmonic will have a certain impact on the distribution system. During system operation, harmonic currents may cause line overheating, increase the risk of electrical fires, and easily interfere with communication. In addition, harmonics can reduce the power factor of current, increase the proportion of reactive power, and trigger fines from regulatory authorities. To solve the harmonic issue, a reliable active harmonic filter was introduced to the power distribution system of the project.

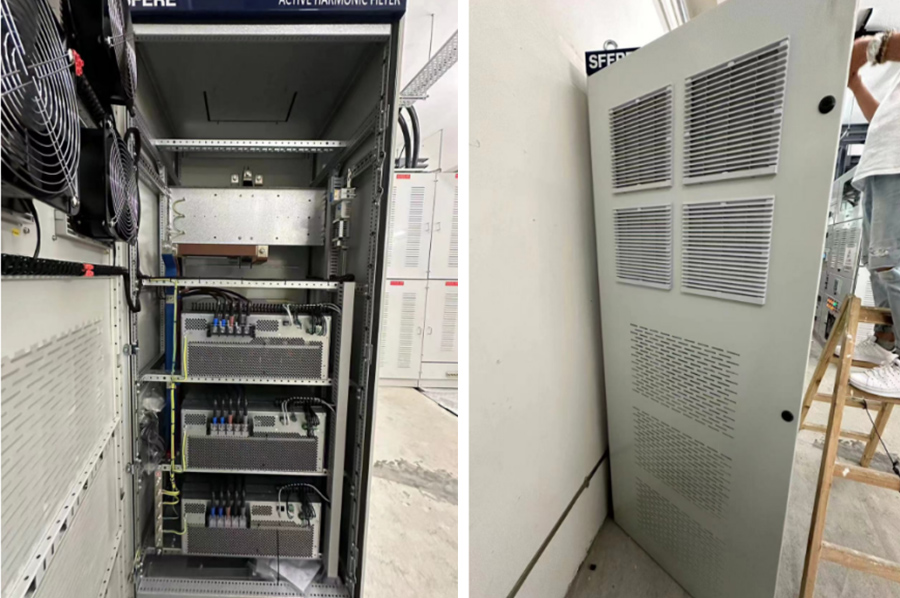

It's the great honor of Sinava Power Solution to take part in the M&E of the Library Building at the early of 2024. The project request 4 units Sinava 360A Active Harmonic Filter in free standand type to solve the harmonic distortion problem of the building.The specification of the harmonic filter is approved by the famous consultant firm WSP. Considering the narrow space of the power distribution & control room of the Library building, Sinava customized the size of the cabinet in 800*800*2000mm combine with the 4 fans at the back door for heat radiation. Sinava Power Solution install and do the commissioning at the site in May and October respectively. We're glad that 4 untis of the 360A Sinava harmonic filter has successfully serve the CUHK Library building.
Power Quality Challenges in Commercial Buildings
Modern commercial buildings and institutional facilities often experience serious power quality problems because of the widespread use of nonlinear electrical equipment.
Common sources of harmonic distortion include:
Variable Frequency Drives (VFDs)
HVAC systems
LED lighting systems
Data centers and servers
UPS systems
Computers and office electronics
Elevators and escalators
Intelligent automation systems
These devices generate harmonic currents that distort electrical waveforms and negatively impact the power system.
In the CUHK Library project, electrical measurements identified excessive harmonic current distortion, particularly 3rd harmonics, causing:
Increased transformer heating
Neutral conductor overheating
Electrical equipment stress
Reduced system efficiency
Potential risks to electrical reliability
Power quality instability
For buildings requiring stable and reliable electricity, implementing an effective harmonic distortion solution becomes essential.
Why Active Harmonic Filters Are Important for Commercial Buildings
An Active Harmonic Filter (AHF) is one of the most advanced technologies for harmonic mitigation and power quality improvement.
Unlike passive harmonic filters, an active harmonic filter dynamically detects harmonic currents in real time and injects opposite compensation currents to cancel harmonics instantly.
Benefits of Active Harmonic Filters
Real-time harmonic compensation
Effective suppression of 2nd to 50th order harmonics
Improved electrical system reliability
Reduced transformer and cable overheating
Lower energy losses
Dynamic reactive power compensation
No resonance risk compared with passive filters
Better compliance with IEEE519 harmonic standards
For commercial facilities such as libraries, hospitals, universities, office buildings, airports, shopping malls, and data centers, installing an active harmonic filter for commercial buildings helps ensure stable electrical operation and long-term equipment protection.
Sinava 1440A Active Harmonic Filter Solution
To address the CUHK Library Building harmonic issues, Sinava designed and supplied a customized 1440A Active Harmonic Filter system.
Installed Equipment
Project: CUHK Library Building
Application: Commercial Building Harmonic Mitigation
Solution Type: Active Harmonic Filter System
Total Compensation Capacity: 1440A
The solution included:
Multiple high-performance 360A Active Harmonic Filter units
Customized cabinet design
Intelligent digital monitoring system
Rear cooling fan structure for efficient heat dissipation
Modular configuration for flexible expansion
The installed AHF system continuously monitors harmonic currents and dynamically compensates for distortion in real time, ensuring stable power quality throughout the facility.
This customized harmonic filter solution effectively reduced harmonic pollution and improved overall electrical performance.
How Active Harmonic Filters Improve Power Quality
An active harmonic filter works by continuously analyzing electrical waveforms and detecting unwanted harmonic currents generated by nonlinear loads.
The system instantly produces inverse harmonic currents that neutralize distortion before it spreads through the electrical network.
This process provides several advantages:
1. Harmonic Reduction
The AHF significantly reduces Total Harmonic Distortion (THD), minimizing harmonic current levels in the electrical system.
2. Improved Equipment Protection
Reducing harmonics protects:
Transformers
Switchgear
Capacitors
Motors
UPS systems
Sensitive electronic devices
This helps reduce maintenance costs and extend equipment lifespan.
3. Better Energy Efficiency
Lower harmonic distortion means reduced energy loss and better system efficiency, supporting lower operating costs.
4. Stable Building Operation
For facilities like libraries and educational institutions, stable electricity is critical. The active harmonic filter system helps maintain uninterrupted operation of lighting, HVAC systems, elevators, and digital equipment.
Results of the CUHK Harmonic Mitigation Project
After the installation of the 1440A Active Harmonic Filter system, the CUHK Library Building achieved substantial improvements in electrical performance.
Key Project Benefits
Reduced harmonic current distortion
Improved power quality
More stable electrical operation
Reduced overheating risks
Better reliability of critical electrical equipment
Improved system efficiency
Enhanced electrical safety
The implementation of a professional harmonic mitigation solution enabled the facility to maintain stable electrical performance while supporting increasing digital infrastructure demands.
This project demonstrates how a properly designed commercial building harmonic filter solution can significantly improve electrical reliability and long-term operational efficiency.
Applications of Active Harmonic Filters
Sinava Active Harmonic Filters are widely used across different industries and commercial sectors.
Commercial Buildings
Office buildings, shopping malls, hotels, and mixed-use facilities.
Educational Institutions
Universities, libraries, laboratories, and campuses.
Healthcare Facilities
Hospitals and medical centers requiring stable electricity.
Industrial Manufacturing
Factories with nonlinear loads and VFD systems.
Data Centers
Facilities requiring high power quality and low electrical disturbance.
Renewable Energy Systems
Solar and photovoltaic power stations.
Why Choose Sinava for Active Harmonic Filter Solutions
Sinava specializes in active harmonic filter manufacturing, delivering customized power quality solutions for industrial and commercial applications.
Advantages of Choosing Sinava
Customized AHF solutions
Strong engineering support
Fast harmonic analysis and system design
Reliable product quality
Scalable modular systems
Compliance with international standards
Experience in commercial building projects
Whether you need an active harmonic filter for a commercial building, industrial plant, hospital, university, or data center, Sinava can provide a professional harmonic distortion mitigation solution tailored to your project requirements.
FAQ-Active Harmonic Filter Solutions
What is an active harmonic filter?
An active harmonic filter (AHF) is an intelligent power quality device that detects and eliminates harmonic currents in real time to improve electrical system stability and efficiency.
Why are harmonic filters important in commercial buildings?
Commercial buildings use many nonlinear electrical loads that generate harmonics. Harmonic filters help reduce distortion, prevent overheating, improve reliability, and protect electrical equipment.
What causes harmonic distortion?
Harmonic distortion is commonly caused by nonlinear equipment such as VFDs, UPS systems, LED lighting, HVAC systems, elevators, and computers.
What is the difference between active harmonic filters and passive harmonic filters?
An active harmonic filter dynamically compensates harmonics in real time and avoids resonance problems, while passive filters are fixed-frequency solutions with limited flexibility.
How do I choose the right active harmonic filter?
The correct AHF size depends on harmonic levels, electrical load characteristics, and system capacity. A professional harmonic analysis is recommended.
