Operation & Maintenance practice of asynchronous motors in cement factories by iMCC and Smart Motor Protectors(SMP)

  Table of Contents

• 1. Introduction

• 2. The role and operation mechnism of smart motor protector and IMCC

• 3. Comparison of mainstream intelligent motor protector functions in the industry

• 4. Causes and serious hazards of residual current in cement plant environment

• 5. Comprehensive multi parameter analysis

• 6. Conclusion

  1. Introduction

In the modern processing industry,cement manufacturing is a typical sample of the asynchronous motor protection and management. It the continuity of material flow is the lifeline of the production line. From limestone crushing, raw material grinding, preheater decomposition, to rotary kiln calcination, clinker cooling, and cement grinding, high-power asynchronous motors (such as high-pressure fan motors and large ball mill motors) and hundreds of small and medium-sized asynchronous motors (such as belt conveyors, screw feeders, and elevator motors) together form the "heart and muscle" of cement plants.

However, cement plants are situated in harsh industrial environments characterized by high dust, high ambient temperatures, heavy load start-up, and strong mechanical vibrations. The motor frequently faces threats such as overload, phase failure, locked rotor, and insulation degradation. The traditional passive maintenance mode of "replacement after burning" or "scheduled power-off maintenance" can no longer meet the strict requirements of modern large tonnage cement clinker production lines for high continuity and high safety.

With the development of Industrial Internet of Things (IIoT) and digital power distribution technology, the collaborative application of Smart Motor Protector (SMP) and Intelligent Motor Control Center (iMCC) has elevated motor protection from simple "terminal power outage tripping" to "full lifecycle digital operation and maintenance", achieving a leap from "seeing and removing obstacles" to "predictive maintenance".

  2. The role and operation mechanism of smart motor protector and IMCC

In the intelligent power distribution architecture, intelligent motor protectors play the role of "micro antennae and execution edges", while iMCC is the "macro brain and data decision-making center". The two build an efficient closed-loop operation mechanism through fieldbus

Site Layer: Asynchronous Motor】-(Physical parameters)--【Edge layer: Smart motor protector】

                                                                ↓

                                                     (High speed fieldbus communication:real time data/Alarm)

                                                                 ↓

【Management Layer: Central Control Room SCADA/EMS --(Production collaboration)--【Control Layer: iMCC】

1. Perception and on-site control of edge layer (intelligent motor protector)

The smart motor protector is directly installed in the iMCC drawer cabinet, adjacent to the contactor and circuit breaker. It utilizes integrated three-phase current transformers, voltage transformers, and zero sequence current transformers to capture the physical operating characteristics of the motor in real-time with microsecond level sampling frequency.

Its core mechanism includes: Holographic modeling of thermal overload: Based on complex mathematical algorithms (such as dual thermal phase models), dynamically simulate the heating and cooling processes of the internal windings of the motor, providing far more accurate inverse time overload protection than traditional thermal relasys.

High speed edge response: Once locked rotor, severe three-phase imbalance, phase failure, or poor grounding fault is detected, the protector can directly drive the local control contact within milliseconds to release the contactor, achieve local protection tripping, and prevent the fault from expanding.

2.Macro collaboration of control layer (iMCC intelligent motor control center)

IMCC connects hundreds or thousands of motor protectors scattered in various electrical rooms throughout the factory into an organic network through high-speed industrial buses such as Profinet, Modbus TCP, EtherNet/IP.

Operation mechanism: The iMCC main control unit (or edge server) reads the digital parameters such as current, voltage, power factor, insulation resistance, and residual current uploaded by each protector in real-time through periodic polling.

Data collaboration: iMCC is not only responsible for receiving data, but also horizontally integrating these electrical parameters with the process control DCS system and enterprise asset management system (EAM). When a critical motor malfunctions and trips, iMCC will activate the system level interlocking logic, automatically switch to the standby unit, or notify the upstream belt conveyor to urgently slow down and feed to prevent material accumulation from killing the entire production line.

  3. Comparison of mainstream intelligent motor protector functions in the industry

In the international industrial control field, the products of Siemens, Schneider Electric, and Rockwell Automation/Allen Bradley represent the highest level of this technology in the industry.

  4. Causes and serious hazards of residual current in cement plant environment

1. Cause

High conductivity dust erosion (resistive leakage): During the cement production process, a large amount of clinker dust, raw material dust, and coal powder are present. When these fine dust particles enter the interior of the casing through the heat dissipation duct of the motor, accumulate at the junction box and winding ends, and encounter moisture in the air (especially during humid rainy seasons or southern cement plants), they will form a layer of weakly conductive "dirt". This layer of dirt builds a bridge between the motor casing and the live winding, causing a sharp decrease in insulation resistance and generating resistive residual current.

Strong vibration causes physical wear (metallic grounding fault): Ball mills, crushers, and large kiln head/tail fans are accompanied by intense low-frequency vibration during operation. Years of vibration can cause microscopic displacement of the enameled wire inside the motor winding, resulting in constant friction and damage between the F-class or H-class insulation layer and the iron core. Eventually, the copper wire directly contacts the iron core, causing high residual current.

High frequency capacitive leakage (capacitive residual current) of variable frequency drive: In order to save energy and reduce consumption, the exhaust fans and powder concentrators in cement plants are extensively driven by variable frequency drives (VFDs). When the high-frequency PWM wave (with extremely high dv/dt pulse amplitude) output by the frequency converter passes through a long-distance power cable, it will excite the ground distributed capacitance between the cable and the metal bridge, the motor winding and the stator core, thereby generating high-frequency capacitive residual current of up to several hundred milliamps.

2. Serious harm

Causing a malignant electrical fire: There is a large amount of combustible coal powder in the coal mill workshop and coal conveyor belt corridor. If the motor junction box or cable tray generates a small residual current (such as 300 mA~1 A) that does not trip continuously due to insulation damage, the heat accumulated at the leakage point can easily ignite the surrounding coal powder or cable sheath, triggering a plant wide fire.

Motor burnout and unplanned shutdown: Minor residual current is often a precursor to insulation breakdown. If not detected, the leakage point will develop into a single-phase grounding short circuit, and the strong short-circuit current will burn out the stator core of the motor within a few milliseconds, causing the motor to be scrapped. Once the motor of the main exhaust fan at the tail of a large kiln is burned out, the replacement cycle can take several days, and the economic losses caused by the shutdown of the entire line can reach millions.

3. Industrial practical scenario: from edge measurement to iMCC intelligent prediction and maintenance

In order to clearly demonstrate how intelligent systems can resolve this crisis, we introduce a real typical scenario of a cement plant: the insulation degradation evolution of the variable frequency motor of the raw material mill circulating fan.

Stage 1: High precision edge data measurement and acquisition (physical layer ->edge layer)

Background environment: In July, at a cement plant in the south, the outdoor humidity was 85%, and dust was pervasive in the raw material grinding workshop. A circulating fan asynchronous motor with a rated current of 315A (using variable frequency drive) is running continuously.

Physical evolution: The motor has been running continuously for 4 years, and due to the synergistic effect of high dust and high humidity in the workshop, fine cement dust has mixed into the junction box. The motor protector (taking Siemens SIMOCODE pro 3UF combined with 3UL23 B-type zero sequence current transformer as an example) begins to capture micro changes in data.

Data collection

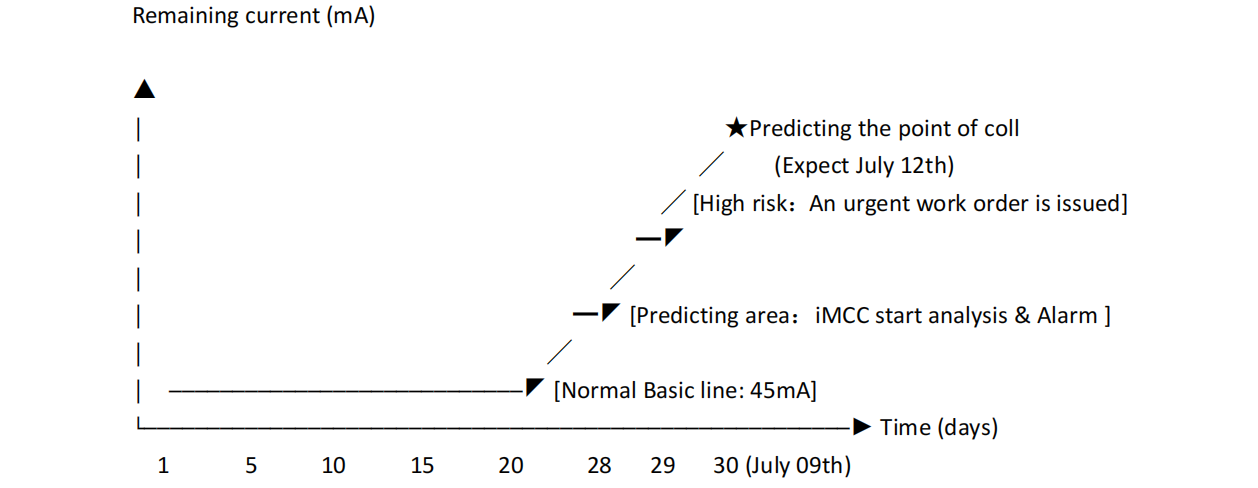

Under normal conditions, due to the presence of long cables, the system has a fixed high-frequency capacitive leakage current of approximately 45 mA (reference line). On July 9th at 08:00, the measurement module detected that the residual current (vector sum) had risen to 85 mA. The digital filter inside the protector automatically filtered out high-frequency capacitive components, identifying that the true power frequency resistive leakage current was increasing at a rate of 2-3 mA per hour.

Phase 2: iMCC data aggregation and vertical trend analysis (edge layer ->control layer)

Data upload: the intelligent motor protector uploads this characteristic parameter to the iMCC edge computing control cabinet in the power distribution room in a period of 10 ms through the PROFINET bus.

Intelligent analysis (predictive maintenance model): The internal asset status monitoring software (Asset Management) of iMCC did not directly trigger the trip (because the local trip action threshold of the motor is set to 500 mA for safety fire protection level). The software's logic algorithm has initiated longitudinal time trend analysis. The system compared the residual current history curve of the motor over the past 30 days and found that its slope suddenly changed (as shown in the following figure).

  5. Comprehensive multi parameter analysis

IMCC simultaneously adjusted the three-phase current imbalance (currently 1.2%) and winding temperature (75°C, normal) of the motor. Based on the meteorological data interface (continuous high humidity), the algorithm provides the final diagnostic result: "The motor winding temperature is not overloaded, the three-phase operation is balanced, but the residual current to ground shows an abnormal logarithmic increase.

Conclusion: The junction box or winding end is severely affected by moisture and dust erosion, and the insulation resistance iscontinuously decreasing. It is expected to evolve into single-phase grounding breakdown within 72 hours.

Stage 3: iMCC Control Decision and Digital Operation and Maintenance Tips (Control Layer ->Production Layer)

Level 1 response: Issuing alerts and coordinating work orders:

On July 9th at 10:00, iMCC issued a "yellow warning" to the SCADA system in the central control room through the factory's industrial Ethernet, and pushed encrypted data to the electrical supervisor's mobile app through the MQTT protocol, automatically triggering a preventive maintenance work order for the enterprise ERP system.

Optimize scheduling (avoid blind tripping):

Thanks to iMCC's advance prediction, the central control room operators did not encounter the dilemma of "sudden tripping causing the production line to be forced to interrupt". The dispatcher, in collaboration with the process personnel, plans to conduct a brief planned shutdown of the raw material mill at 02:00 am on July 10th (during the power valley period and idle production schedule).

Accurate maintenance tips and implementation:

The work order clearly indicates the on-site maintenance instructions: "Check the junction box of the motor for the circulating fan of the No. 4 raw material mill, clean the cement dust, perform drying and dehumidification treatment,,and retest the insulation resistance.

After the shutdown in the early morning of the next day, the electrical technicians went straight to the target and opened the junction box, only to find that the interior was covered with damp cement dust. After fine cleaning, blowing, and drying, the residual current returned by the intelligent motor protector returns to the healthy baseline of 46 mA after restarting.

  6. Conclusion

Through the typical case of the cement plant mentioned above, it can be seen that the combination of intelligent motor protectors and iMCC has completely changed the distribution and operation ecology of traditional industrial enterprises.

In response to the hidden and deadly residual current, the intelligent system no longer acts as a power outage fuse for "hindsight", but transforms into an all-weather "health doctor".

Starting from high-precision edge measurement at the micro level, to high-speed data transmission on the bus, and then to deep integration of big data trend algorithms in the control center, iMCC has given factory managers the "sky eye" to gain early insight into insulation defects.

This shift from "passive repair" to "active management" not only eliminates the hidden dangers of major electrical fires and motor burnout, but also brings incalculable economic benefits and safety guarantees to cement plants. It is the only way for modern heavy industry to move towards digital and intelligent transformation.
