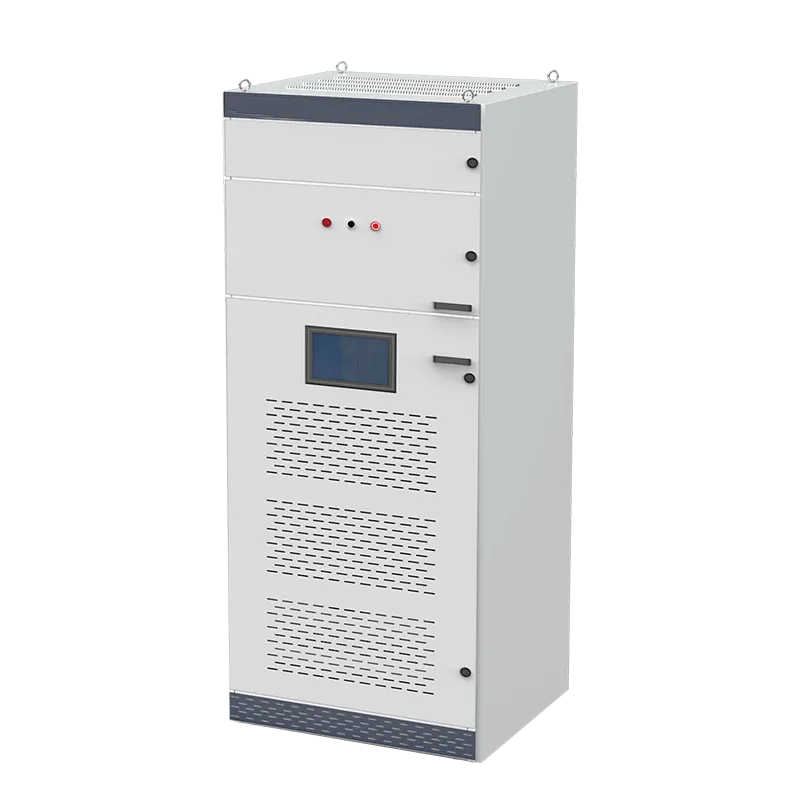

Capacitor Bank
SINAVA POWER
A capacitor bank compensation the power system, can balance inductive loads, improve power factor, and enhance equipment utilization.
Sinava's capacitor bank provides a compact and environmentally friendly solution. Designs can be tailored to meet customer application needs. Capacitor bank usage reduces system losses and CO2 emissions, and improves power quality, efficiency, safety and reliability.
Partner with Us for Reliable Capacitor Banks
A "cap bank," or capacitor bank, is a crucial component in power factor correction systems. Capacitor banks help improve this by compensating for reactive power, thus optimizing power factor and enhancing overall electrical system efficiency.
Capacitor banks from Sinava are designed for high reliability and ease of maintenance. Capacitor Banks come in various configurations and ratings, suitable for different industry needs. Capacitor Banks are highly customizable and can integrate seamlessly into existing power distribution systems.

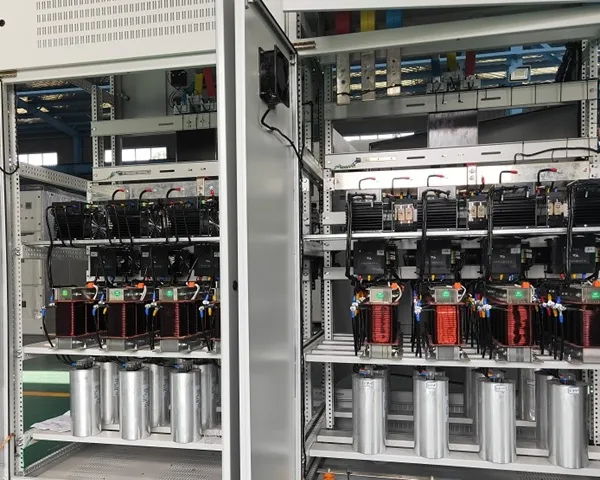

Sinava's Capacitor Bank series is a true engineered-to-order product custom-tailored to meet specific applications. These banks are available in single-step and multi-step configurations with a full range of accessories that can easily be incorporated into the system solution. Features include protection and control equipment, instrument transformers, control power transformers, isolating and grounding switches, switching devices/circuit breakers, interlocks, surge arresters, reactors, fusing (externally or internally fused), discharge coils, temperature and condensation control equipment, and fire protection.
Capacitor banks find extensive use across various industries:
Power Distribution: Utilized in substations to enhance voltage stability and reduce losses.
Capacitor Bank for Industrial Use: Employed in manufacturing plants to maintain power quality and improve efficiency.
Commercial Facilities: These are used in commercial buildings to optimize energy consumption and lower utility costs.
Contact Us for Tailored Capacitor Bank Solutions.
The benefits of capacitor banks are multifold:
Improved Power Factor: Enhances the overall efficiency of the electrical system.
Reduced Harmonic Distortion: Mitigates issues related to harmonics, improving power quality.
Increased System Capacity: Allows for higher loads without necessitating upgrades to existing infrastructure.
Voltage Regulation: Stabilizes voltage levels across the system, enhancing equipment performance.
Optimize Your Power System with a Custom Capacitor Bank – Start Now!
Sinava Power Solution is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we’re accelerating the planet’s transition to renewable energy and helping to solve the world’s most urgent power management challenges.
Contact Us for Tailored Capacitor Bank Solutions.
Industries
Industry
Shopping mall
Workshop
Technical Specifications
400V
480V
| Rated Voltage | 380V(228V~456V) | 480V(380~690V) |
| Rated capacity | 100kvar-450kvar | |
| Rated Frequency | 50Hz/60Hz (-10% ~ +10%) | |
| Operation mode | Automatic compensation | |
| Wiring | 3P3W/3P4W | |
| Function | Reactive power compensation,Harmonic compensation(THDi≤25%,THDu≤4%) | |

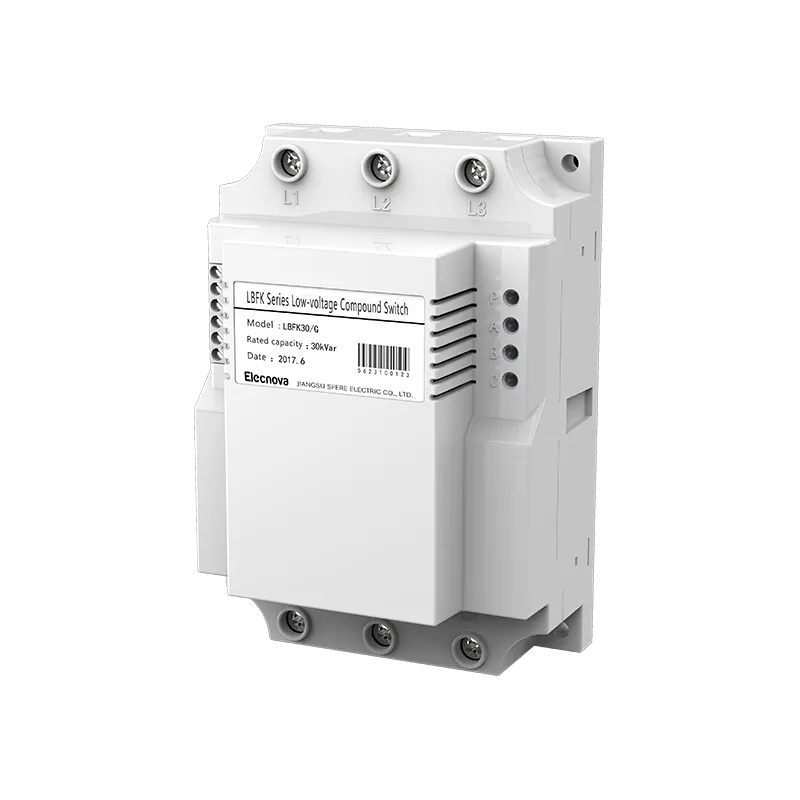

| Cotrol Switch | Thyristor Switch Controller | |
| Harmonic Filtering | 2nd to 13th Odd orders | |
| Compensation per step | 15~50kvar | |
| Overall response time | ≤1ms | |
| Target power factor | adjust from -1 to +1 | |
| Capacitor technology | 3 phase capacitors | |
| Capacitor tolerance | -5%~+10% | |
| Detuned Reactors | 7%/14% | |
| Main incomer protection | MCCB | |
| Breaking capacity | lcu 35kA | |
| Step protection type | Overload: harmonic control/Short-circuit: main circuit breaker | |
| Accessibility for operation | Front | |
| Provide equipment | Auxilliary transformer | |
| Function available | Alarm contact | |
| Color | Grey(RAL 7035) | |
| Maximum weight | 250kgs | |
| Dimension (W*H*D)mm | 1000*1000*2000mm | |
| Mounted location | Indoor | |
| IP degree of protection | IP20 IP30 IP40 | |
| Relative humidity | 0~95%,non-condensing | |
| Operation altitude | ≤2000m | |
| Operation temperature | -5~45°C | |
| Ambient temperature | Up to 50°C | |
| Certification | CE | |
| Standard complication | IEC61921:2017, IEC61439-1/2 | |
